Part Number: 20GND

SWAG Gooseneck Dies, Fit The 12 Ton, 20 Ton & Compact Finger Brakes Only

$164.95
$164.95
Free Shipping Sold out New Backordered

This Item Ships Using (USPS), Please Provide A Suitable Shipping Address

Choose Options

Shipping calculated at checkout.
Gooseneck Dies For 12 Ton, 20 Ton & Compact Finger Brakes Only

Are you looking to increase the bending capabilities of your SWAG finger press brake kit?

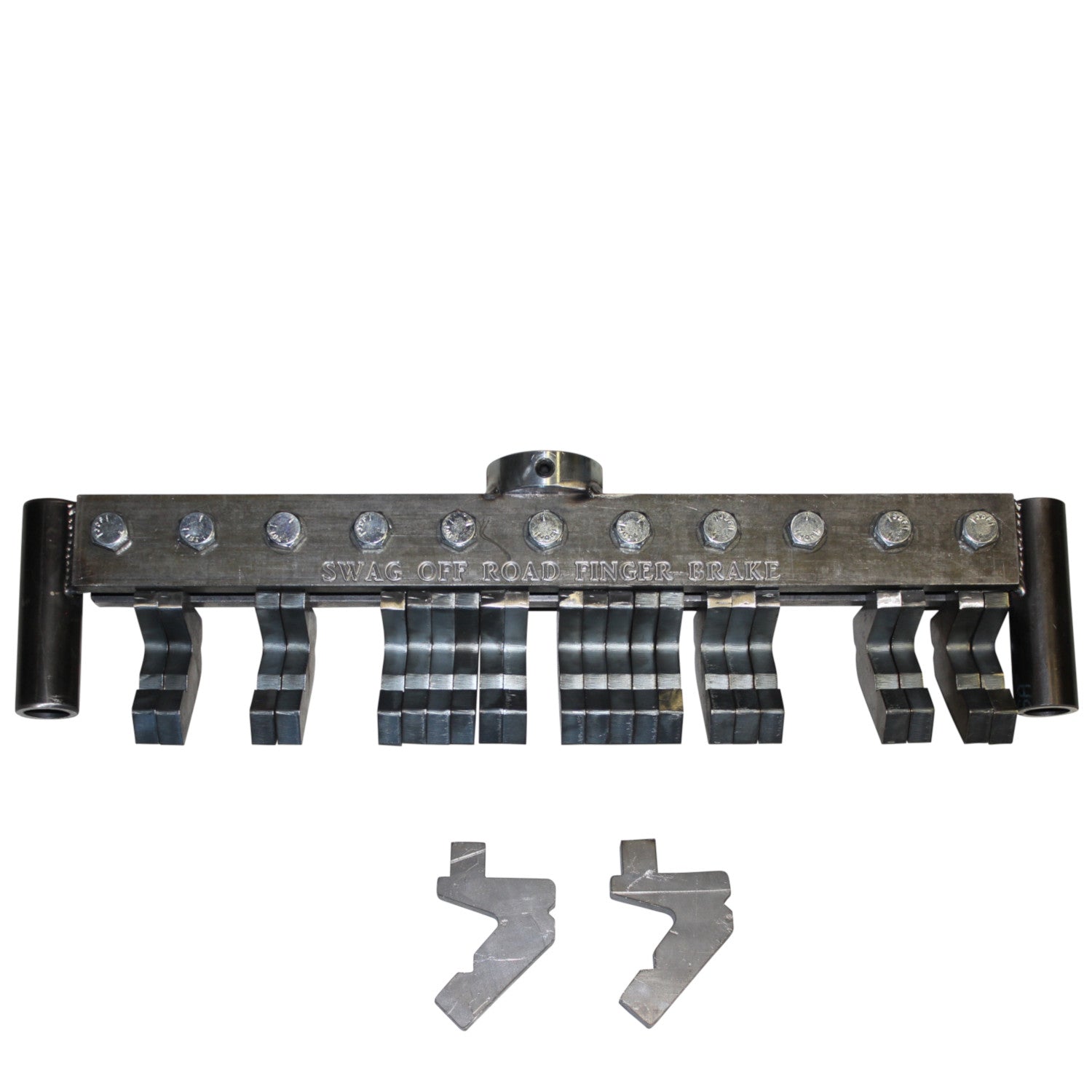

The SWAG Gooseneck dies are laser cut at 90° to allow for air bending. These punches are used for forming right angle bends, channels, or other special bends where our straight 90° punch would cause interference and limit your bending options.

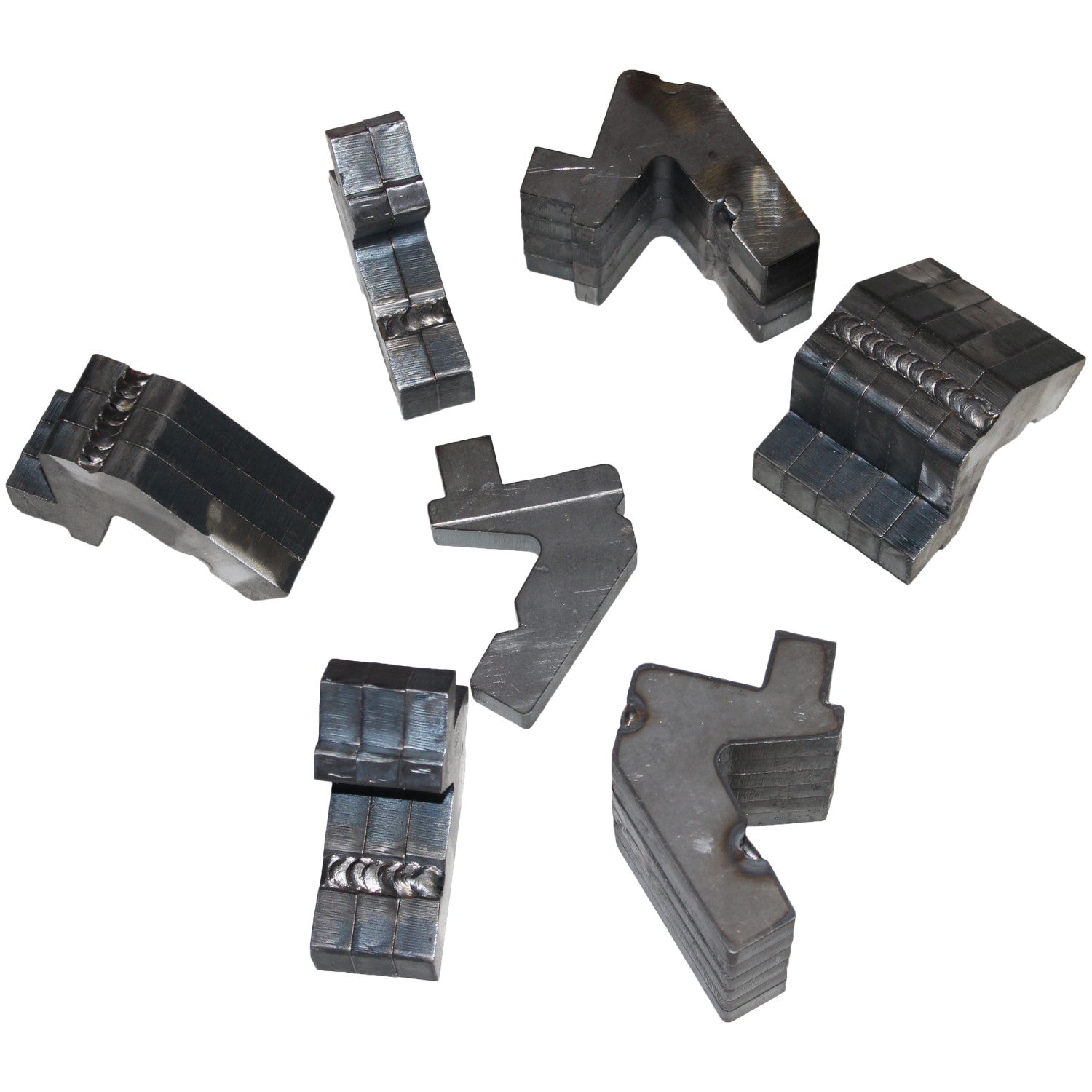

If you have used your press brake for any "special" projects you have ran into the limitations of the straight segmented fingers. These limitations become apparent when bending shallow pans or forming complex "U" bends. For this reason, we have laser cut 24 individual pieces of 1/2" plate that can be stacked in line or welded together to suite your particular needs. When fully assembled and stacked in line you will have a 12" long goose neck bending top die.

The SWAG finger brake Gooseneck dies are able to bend up to 1/4" thick material.

If you have the HD finger press brake kit you will be able to bend U shaped pieces that have maximum leg "A" that is 2.0" long and a minimum width "B" of 2.0" wide.

If you have the standard finger press brake kit your "A" measurement will be a maximum of 2.0" long and "B" width of 1.0" wide

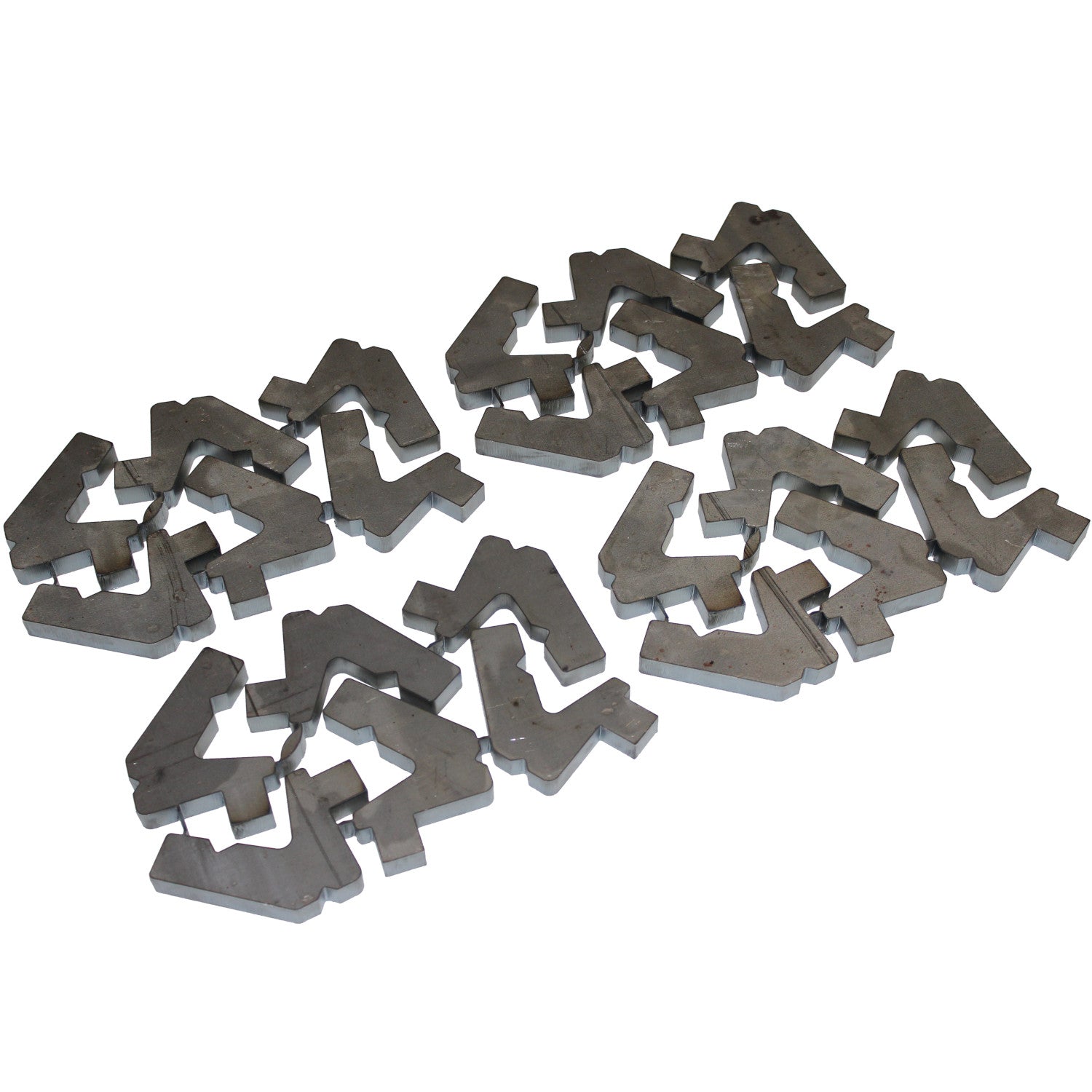

Please note that these dies are tabbed together and will need to be cut apart at the end user prior to use, refer to picture #4 above.

NOTE: This listing is just for an accessory die set for your Finger Brake. The Gooseneck Dies cannot be used to bend material without one of our Finger Brakes. They do not function as a standalone product and are not compatible with our Press Brakes.

Related Products
from $364.95
from $364.95
Free Shipping Sold out New Backordered
from $345.95
from $345.95
Free Shipping Sold out New Backordered
from $314.95
from $314.95
Free Shipping Sold out New Backordered

Customer Reviews

Based on 23 reviews
96%
(22)
4%
(1)
0%
(0)
0%
(0)
0%
(0)
G
George Lenart
Added veratility

These make the press brake do many more things!!

R
Richard Strauss
2 sets

They worked very nice. I ended up buying a 2nd set when I had to bend wider sheets .

M
Michael O.
Really nice.

I figured these would be nice, because my press brake is. Clearly not mild steel. These are smooth and tough. I would suspect some kind of tool steel, but Swag doesn't specify. I don't think they are hardox. I didn't buy them with my break b/c I didn't think I really needed them. Since, then I keep having the need to make double bend brackets. These are just the solution. Very clean laser cut, so not much clean up needed.

D
DONALD CLAYBURGH
Easily bends up to 90 degrees in tighter spots.

These dies bend to 90 degrees, the original bend up to 60 degrees, and the hemming dies bend at 30 degrees. Some have commented about the task of separating the dies, as they come tabbed together. I just flexed the parts at the tabs, and they came apart easily. I then used a 12 inch bench sander to smooth out where the tabs were. It took me about 30 minutes for both the gooseneck and hemming die sets. Both sets now work as advertised.

T
Tim

Was able to break these apart by hand. A few seconds on the belt grinder and they were ready to go. Will do the job I need done.
