20 TON Finger Brake Press DIY Builder Kit


Press Brake kit comes un-assembled, you do the final assembly and welding.

Designed to fit the Harbor Freight 20 ton hydraulic press Item # 32879, 60603 & 70603. Press brake kit includes an adjustable back stop for accurate and repeatable bends. .

The top clamping bar is machined out of 4140 material and includes 5 segmented removable sections. 1", 2", 3", 4" and 9.5" long pieces. These segmented blocks can be removed and rearranged to allow bending of restricted areas on a piece of sheet metal or on an already partially formed pieces.

  • Max Bending Radius (deg.) 110
  • Max Bending Capacity 3/8" plate
  • Max Bending Width 19.25"
  • Total width of the brake is 22.125" wide

Tools required for assembly: welder, grinder, level, small square.
It Is capable of bending mild steel in the following length and thickness.

  • 19" = Full bending width of the bottom die on anything 1/8" or thinner.
  • 15" in 3/16"
  • 12" in 1/4"
  • 5" in 3/8"

Please provide us a valid shipping address that UPS/FEDEX will deliver to.

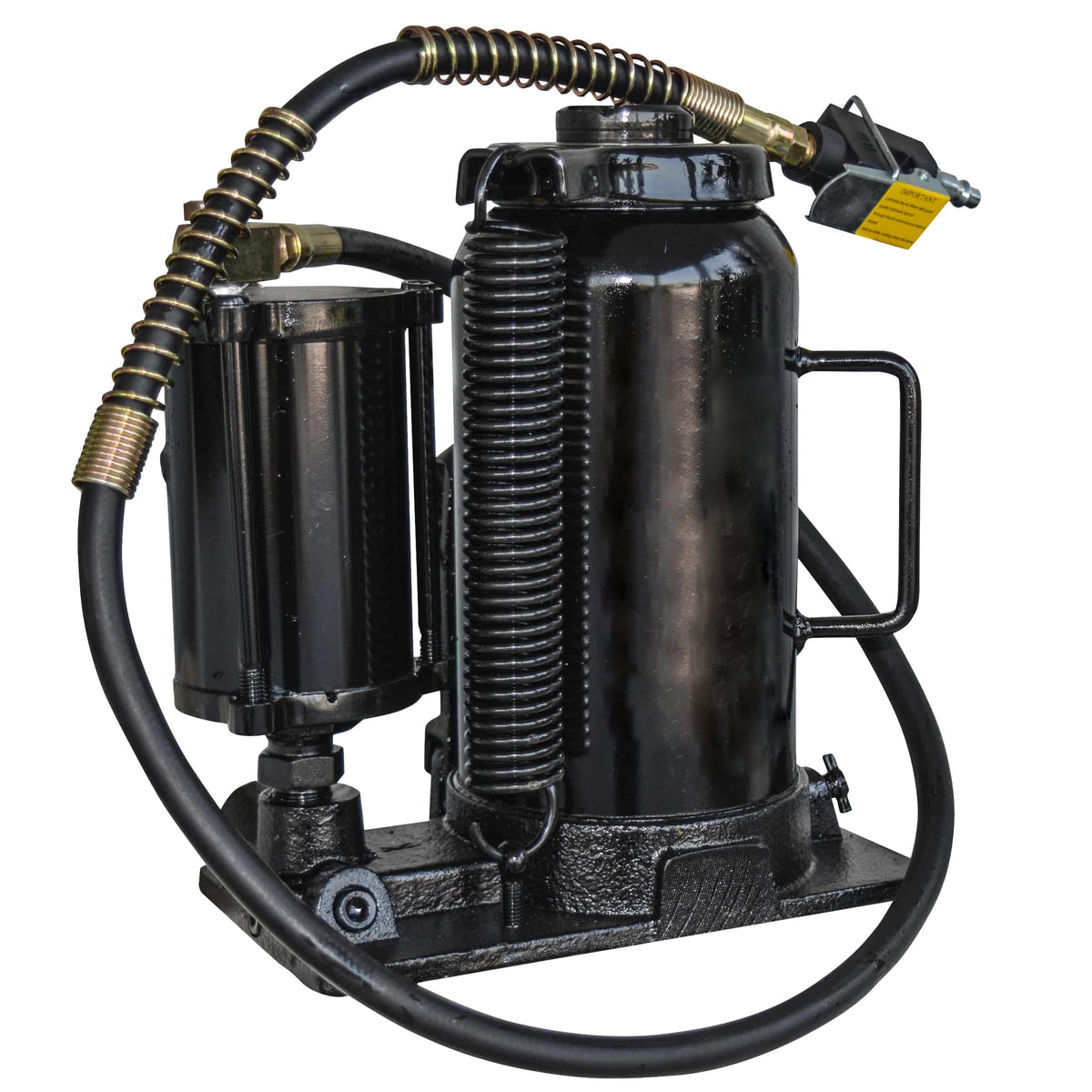

NOTE: Shop Press and Bottle Jack are NOT Included
NOTE: The optional centering tabs provided with the finger break do not come attached on the fully welded kit.

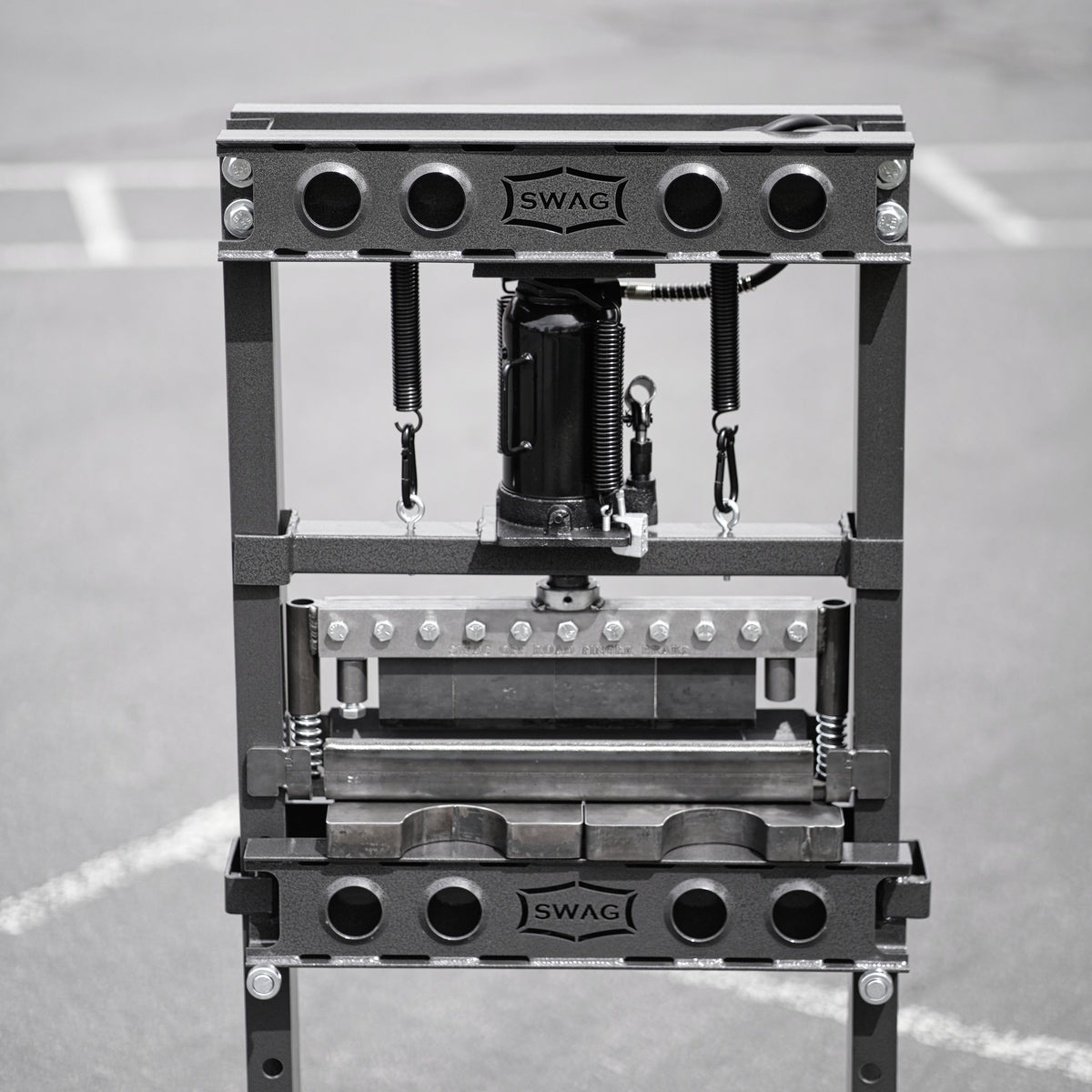

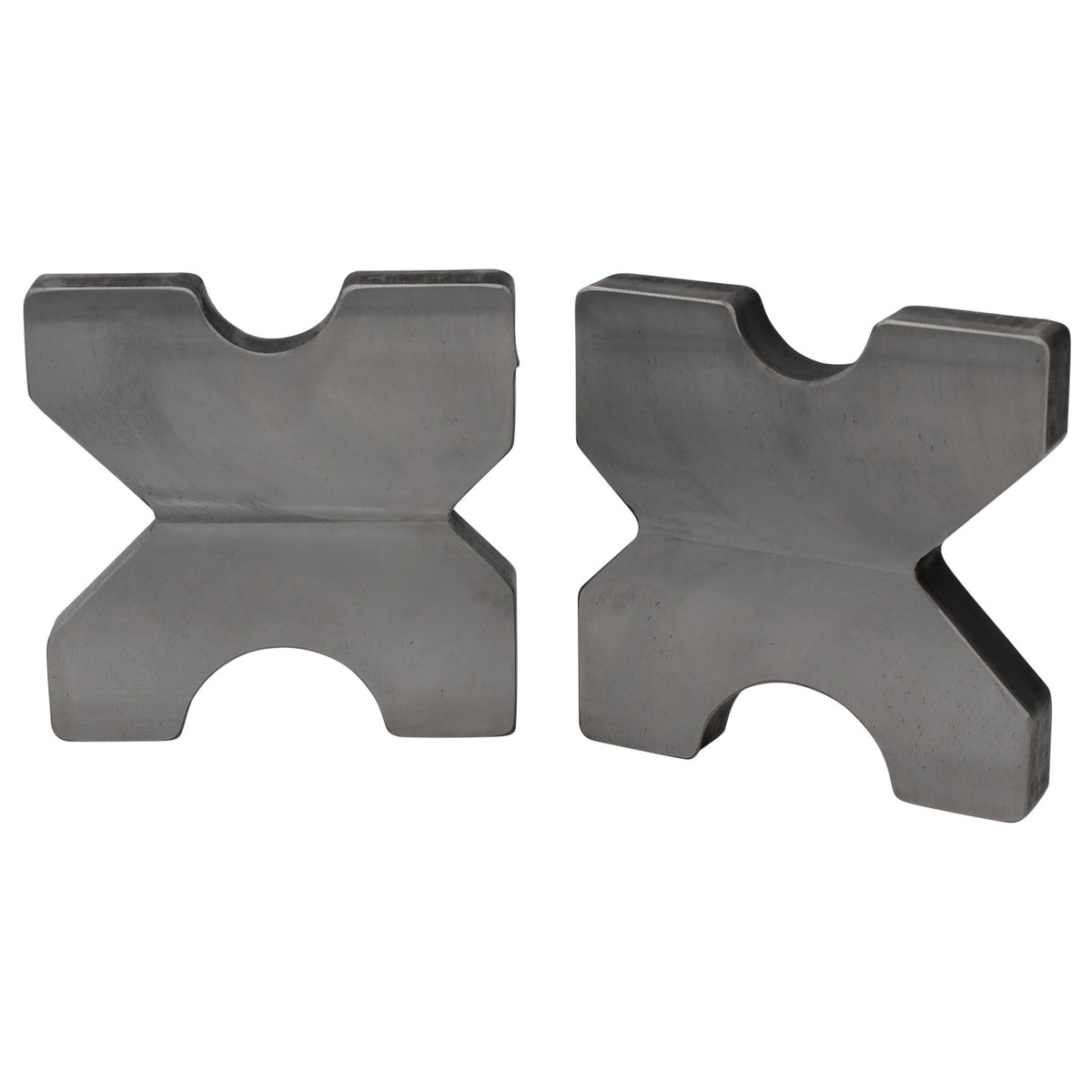

The DIY 20 ton press makes a great addition to the arbor press plates we sell HERE.

Related Products
from $364.95
from $364.95
Free Shipping Sold out New Backordered
$14.95
$14.95
Free Shipping Sold out New Backordered
$16.95
$16.95
Free Shipping Sold out New Backordered

Customer Reviews

Based on 40 reviews
93%
(37)
8%
(3)
0%
(0)
0%
(0)
0%
(0)
S
Simon Lockwood
A little ripper!

I like my metal bends like I like my women: well formed, tight, fingered in the right places and shedding just a little bit of scale.

Cost a bomb to get this bad boy and the adjustable die shipped to Oz but worth every cent. First job nearly paid for it and it made life an absolute dream.

Thoughts for improvement if y’all’re feeling adventurous:
1. Offer a longer one :)
2. A base with tall (2 or 3”?) segmented V die together with extensions on the slides and springs would make zig zags possible and the machine a lot more versatile.

In the meantime, my press is actually getting used now and I’m happy as can be.

Thanks!

J
Jason

As expected, well made.

J
Justin Hansen
Awesome Press Brake

This is a great press brake. Works great, bent 3/16" plate like nothing. Also, really fun and pretty simple to assemble.

D
David Schutzenhofer
Still waiting but happy so far

Received the standard press brake package but instead of the kit being welded, as I had ordered it, the kit was only half done. I called and got someone to call back nearly immediately and spoke to a very freindly and courteous person who checked my order and agreed that I didn't get what I ordered. He immediately said that they would send out the welded part and would have a return label for the unwelded part. That was one of the best customer service experiences that I have ever been through.
The downside is that I am still waiting to receive the new part. As of today, Fed Ex still has not delivered and says it is waiting for the package to come from SWAG.
Other than that, I am completely happy with SWAG customer service and product quality. I will most likely buy the flat top next.

T
Tanner Korenkiewicz
High expectations with medium delivery

I had extremely high expectations of this product, but no matter what I do, I can’t get all of the fingers to stay in at once. No matter what, one always falls out. I have tried different torque settings, different order of operations for bolt tightening, etc. seems like a sturdy product, but this one issue limits my ability to utilize it efficiently. However, I have not reached out to swag for assistance so I have not given them the opportunity to help me so that is my bad

Tanner,

Thank you for your order and sorry to hear that you haven't been completely satisfied with your brake.

Fortunately, we have an easy solution that will fix the issue with the loose finger. Please reach out to us at sales@swagoffroad.com and our customer service representative will walk you through the process.

Thank you,
SWAG Off Road
