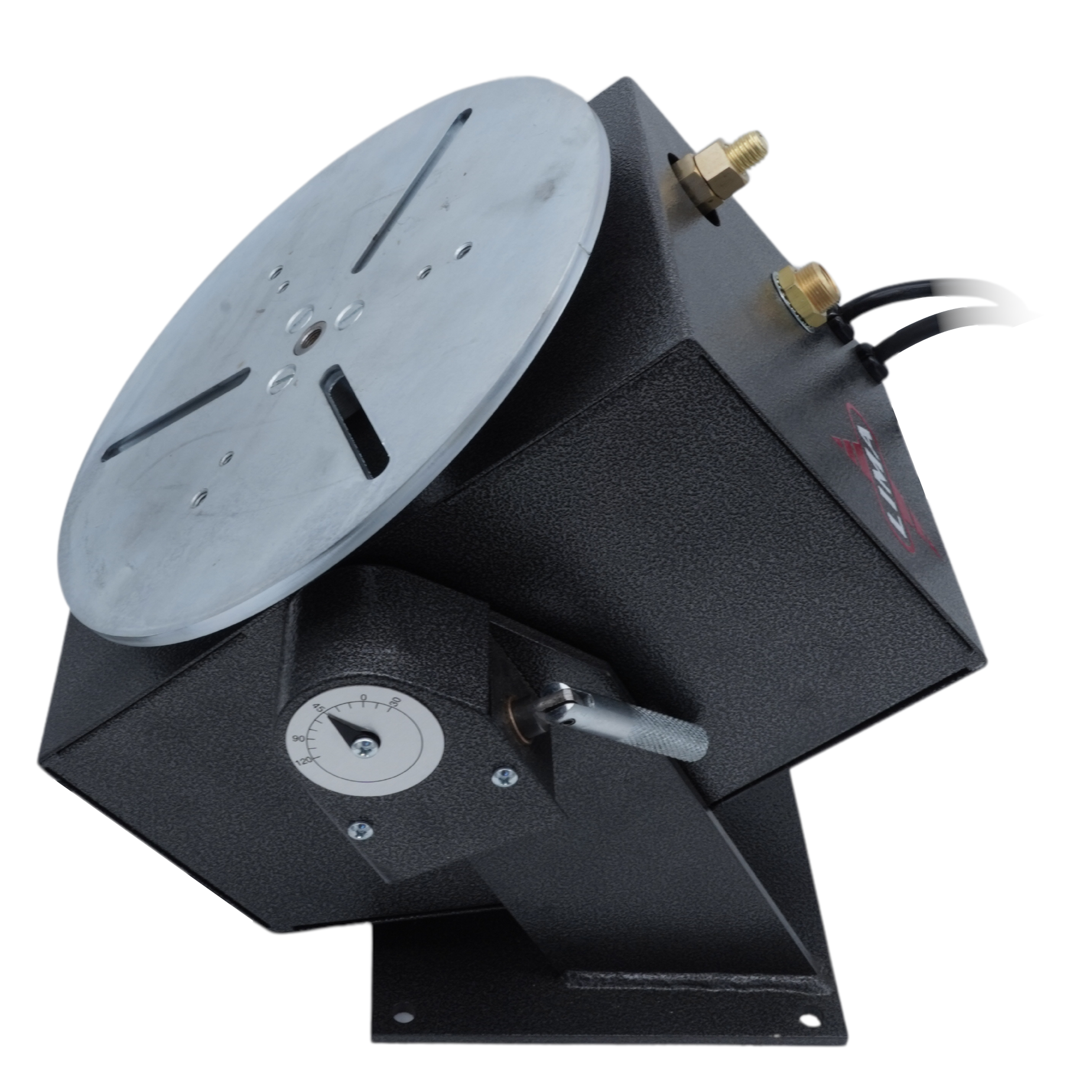

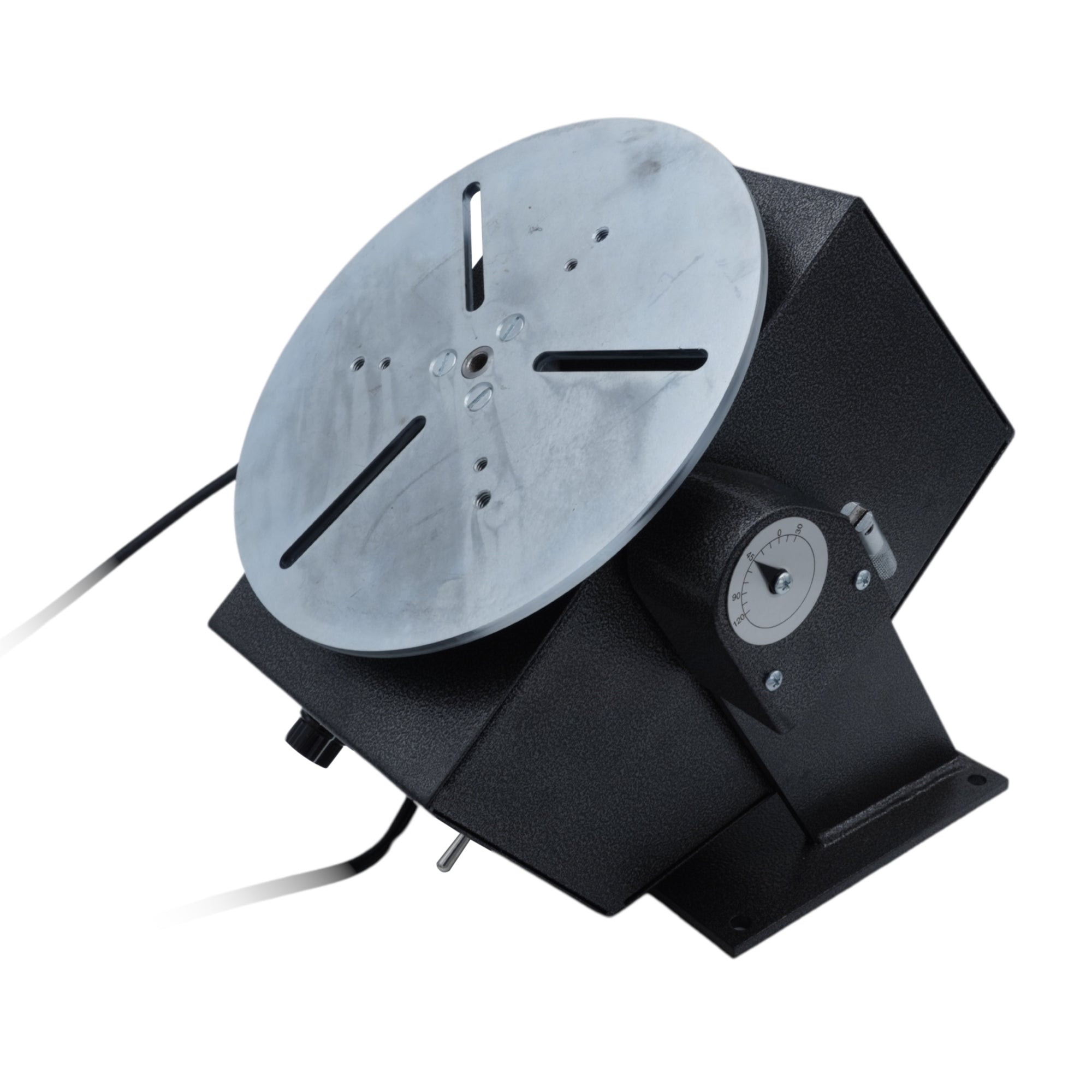

XT-200 Tilting Welding Positioner - TIG Package

The Lima model XT-200 is a tilting welding turntable, capable of handling loads up to 200 pounds in the horizontal position.   A worm gear with swivel handle and locking plate is responsible for tilting and securing the table from -15° to 130°.  The table is driven by a DC Permanent Magnet gear motor driving Cast Iron secondary gears.

Built in high frequency protection makes the Lima XT-200 well suited for MIG, TIG, or stick welding, as well as other processes such as painting, assembly, positioning,  or plasma cutting.

Up to 200A welding current is handled by way of built in solid brass grounding, including a threaded output stud for attaching a ground clamp or cable.

Operating the XT-200 is simple and straightforward.  The machine comes standard with an On/Off toggle switch and speed control on the panel.  A 5' power cable with plug, and a foot on/off switch are also included.

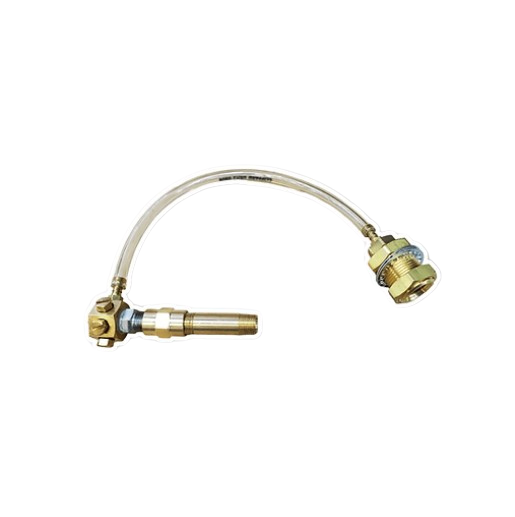

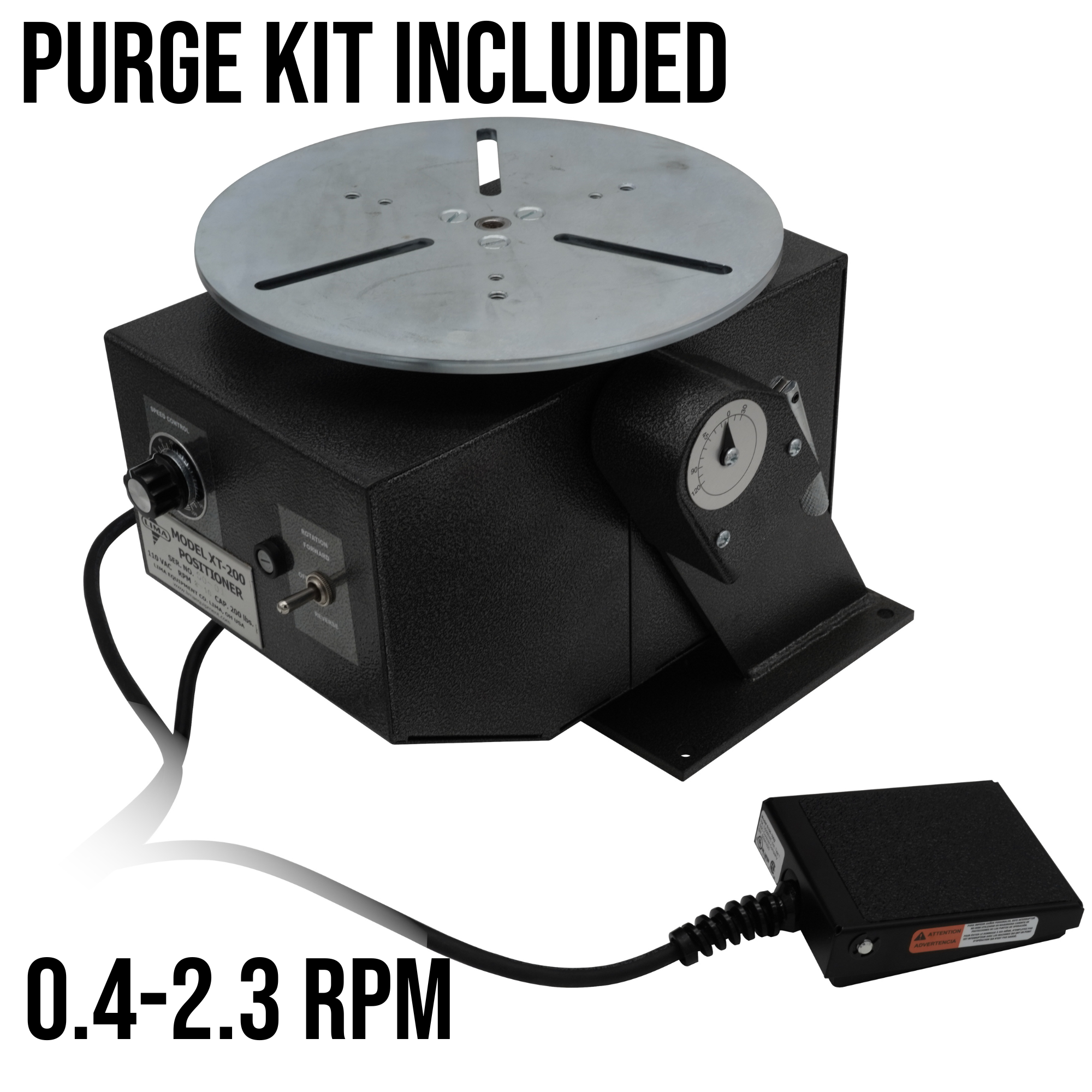

The XT-200 Tilting Tig Welding Positioner includes the entire gas purge assembly.



 Specifications:

200 lb. capacity in the horizontal position

Tilting capacity from -15 to 130 Degrees

10" Steel Slotted Table

115VAC 60Hz. @ 1.3A

Gas Purge (Option) Input Fitting:  1/4 NPT

Gas Purge (Option) Shaft Output:  1/8 NPT

0.4-2.3 RPM
